Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AUTOSTRONG
  • Model Number: AUTO-IPX3/4
  • Power: Electronic
  • Usage: IEC60529 IPX3 IPX4 waterproof test equipment
  • waterproof test equipment Reference: IEC60529 IPX3 IPX4 GB4207
  • Swing pipe radius: 400mm,600mm,800mm,1000mm,1200mm
  • Water Hole Size: 0.4mm
  • Water Hole spacing: 50mm
  • Oscillating Tube control: ±60°,±90°,±180
  • Rain water: 50~150kpa adjustable
  • Test Tabel Size: 600mm diameter
  • Oscillating Tube material: seamless stainless steel
  • Protection Device: Leakage and non with
  • laboratory equipment: 220V 50-60Hz (customized)

Packaging & Delivery

Packaging Details Packed with strong wooden case waterproof test equipment
Delivery Time Shipped in 20 days after payment
Oscillation Tube Tester IEC60529 IPX3 IPX4 waterproof test equipment



Product Description

 Appliation:IEC60529 IPX3 IPX4 oscillation tube tester waterproof test equipment  is for checking the protection against water with spray nozzle of 0,4 mm bore are used to prove the degrees of protection for the second characteristic numerals 3 and 4 “Protection against Spraying Water” resp. “Protection against splashing Water”.


The protection against spraying water / laboratory equipment  is determined by causing the oscillating tube to oscillate over the specimen through an angle of 60°on either side of the vertical each at a speed of about 60°per second, while the jets coming from a larger angle than 60°to the vertical are baffled by deflectors. But there is also a slightly amended regulation, according to which the oscillating tube with deflectors stands still in a vertical position, and the specimen is turned-for example on a turntable-at a convenient speed a vertical axis.

Tester Purpose:
IPX3 IPX4 oscillation tube tester / laboratory equipment purpose is to determine the protection against splashing water, the oscillating tube is caused to oscillate through an angle of almost 180°on either side of the vertical at a speed of about 60°per second, while depending on regulation the specimen stands still or is turned at a convenient speed. Each of these tests lasts for example 10 minutes.

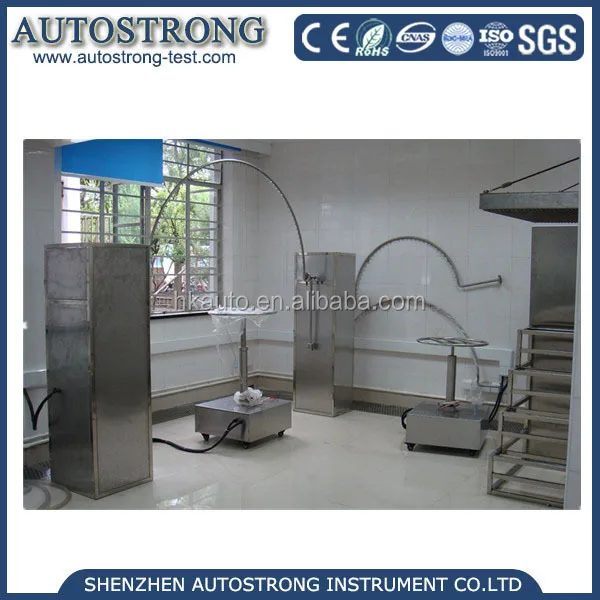

A complete test unit comprises a set of oscillating tubes as accessories, the oscillating appliance with the drive and-in the case of larger oscillating tubes-the opposite bearing. The oscillating tubes are manufactured with orifice radii of 200 mm to 1600 mm with a progressive ratio of 200 mm.

Conform to:
IEC60529 IPX3 IPX4 oscillation tube tester/ laboratory equipment ,IEC60598-1, IEC 60335-1, EN60335-1, IEC60950-1, GB4208, GB7000.1

Features:
1. All English Touch Screen Control;
2. Fully conform to IEC60529 IPX3 IPX4 Tester;
3. Two different oscllation spray tester design;
3. Stainless steel nozzles removable for cleaning or replacing;
4. Water supply unit includes water filter, pump, flow meter, electromagnetic valve and switch valve.

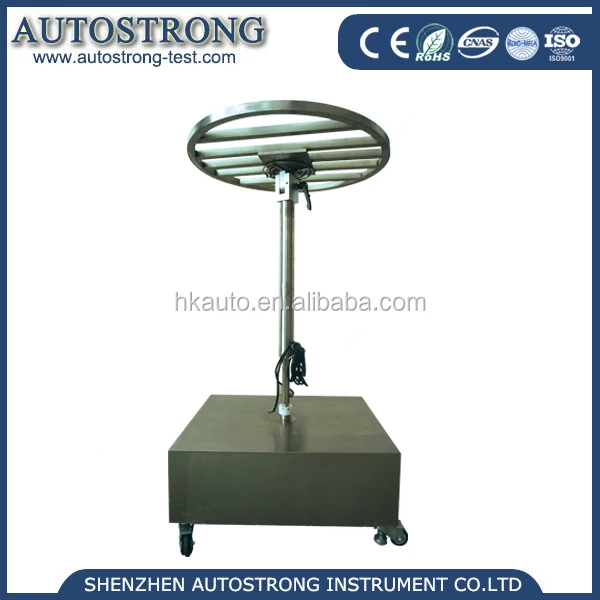

5.Motorized turntable connected to instrument controller;
6.Stainless steel oscillation tubes;
7.Various size oscillation tubes/ laboratory equipment (R200/400/600/800/1000/1200mm);
